AIR HOSE REEL (PLASTIC BODY) Manufacturer, Supplier & Exporter from Vasai Mumbai China, India, United States, Indonesia, Pakistan, Brazil, Nigeria, Bangladesh, Russia, Mexico , Japan, Ethiopia, Philippines, Egypt, Vietnam, DR Congo, Turkey, Iran, Germany, Thailand, United Kingdom, France, Italy, Tanzania, South Africa, Myanmar, Kenya, South Korea, Colombia, Spain, Uganda, Argentina , Algeria, Sudan, Ukraine, Iraq, Afghanistan, Poland, Canada, Morocco, Saudi Arabia, Uzbekistan, Peru, Angola , Malaysia, Mozambique, Ghana , Yemen, Nepal, Venezuela, Madagascar, Cameroon, Côte d'Ivoire , North Korea, Australia, Niger, Sri Lanka, Burkina Faso, Mali , Romania, Malawi, Chile, Kazakhstan, Zambia, Guatemala, Ecuador, Syria, Netherlands, Senegal, Cambodia, Chad, Somalia, Zimbabwe, Guinea, Rwanda, Benin, Burundi, Tunisia, Bolivia, Uatu, Barbados, Sao Tome & Principe, Samoa, Saint Lucia, Kiribati, Grenada, St. Vincent & Grenadines, Tonga, Seychelles, Antigua and Barbuda, Andorra, Dominica, Marshall Islands, Saint Kitts & Nevis, Monaco, Liechtenstein, San Marino, Palau, Tuvalu, Nauru, Holy See, Arunachal Pradesh, Patan, Kota, Chandighar, Pune, Tinsukia, Gaya, Ajmer, Ludhiana, Solapur, Dibrugarh, Bihar, Udaipur, Bathinda, Kolhapur, Jorhat, Varanasi, Jodhpur, Moga, Chennai, Assam, Prayagraj, Bikaner, Jalandhar, Puducherry Guwahati, Gorakhpur, Rajasthan, Gurdaspur, Maduari, Nagaland, Kanpur, Bareilly, Pathankot, Thiruvananthapuram, Manipur, Lucknow, Agra, Amritsar, Tamil Nadu, Tripura, Odisha, Jaipur, Jammu, Imphal Meghalaya, Bhubaneswar, Moradabad, Srinagar, Mizoram, Sikkim, Puri, Haldwani, Palampur, Kohima, Siliguri, Brahmapur, Naintal, Himachal Pradesh, Shillong, Kolkata, Chhattisgarh, Haridwar, Punjab, Noida West Bengal, Raipur, Gurugram, Haryana, Dhanbad, Bhilai, Delhi, Bhopal, Jamshedpur, Visakhapatnam, Hisar, Indore, Ranchi, Vijayawada, Karnal, Rajkot, Jharkhand, Kakinada, Panipat, Vadodara, Maharashtra, Telangana, Sonipat, Ahmedabad, Mumbai Gwalior, Ambala, Nagpur- S P Engineers

AIR HOSE REEL (PLASTIC BODY) ENCLOSED TYPE

SP-MINI REEL SERIES 9200

TECHNICAL FEATURES :

  • Mini-reel for applications in the industrial sector and for hobby.
  • M么n extruded
  • Polyurethane hose
  • Techno polymer casing
  • Provided with hose ratchet stop device, easily removable if constant traction is required.
  • Working temperature: -5 虋C/ +40 虋 C
MODEL NO HOSE ID MM HOSE MTR MAX PRESS BAR HOSE TYPE AIR WATER OIL KG
SP9200/6 5.5 6.5 12 PU YES YES NO 2

SP- REEL SERIES 904-905

TECHNICAL FEATURES:

  • Techno polymer casing
  • Complete with pivot bracket
  • Provided with hose ratchet stop device, easily removable if constant traction is required.
  • PU Hose
MODEL NO HOSE ID MM HOSE MTR MAX PRESS BAR HOSE TYPE AIR WATER OIL KG
SP904/8 8 10 15 PU YES YES NO 4
SP904/10 10 8 15 PU YES YES NO 4
SP905/SP9 8 16 15 PU YES YES NO 7
SP905/10 10 16 15 PU YES YES NO 7
SP905/13 12.5 11 15 PU YES YES NO 7
SP904/SP9/S 8 10 15 PU YES YES NO 4
SP904/10/S 10 8 15 PU YES YES NO 4
SP905/SP9/S 8 16 15 PU YES YES NO 7
SP905/10/S 10 16 15 PU YES YES NO 7
SP905/13/S 12.5 11 15 PU YES YES NO 7

DIMENSIONS 804

DIMENSIONS 805

SP- REEL SERIES IND

TECHNICAL FEATURES:

  • Techno polymer casing
  • Complete with pivot bracket
  • Provided with hose ratchet stop device, easily removable if constant traction is required.
  • Suitable for air transmission
MODEL NO HOSE ID MM HOSE MTR MAX PRESS BAR HOSE TYPE AIR WATER OIL KG
SPIND-90/8 8 10 15 PU YES NO NO 4.5
SPIND-95/8 8 16 15 PU YES NO NO 8
SPIND-95/10 10 16 15 PU YES NO NO 8

DIMENSIONS IND80

DIMENSIONS IND85

SP- REEL SERIES ALU

TECHNICAL FEATURES:

  • PU Hose
  • Diecast aluminium casing,
  • Complete with pivot bracket
  • Provided with hose ratchet stop device, at desired length, easily removable if constant traction is required
MODEL NO HOSE ID MM HOSE MTR MAX PRESS BAR END PIPE FITTING HOSE TYPE AIR WATER OIL KG
SPALU91/8 8 MM (5/16") 10 15 BAR 1/4" M PU YES YES NO 6
SPALU91/10 10 MM(3/8) 8 15 BAR 3/8" M PU YES YES NO 6
SPALU93/8 8 MM (5/16") 16 15 BAR 1/4" M PU YES YES NO 9
SPALU93/10 10 MM (3/8") 16 15 BAR 3/8" M PU YES YES NO 9
SPALU93/13 12.5 MM (1/2") 11 15 BAR 1/2" M PU YES YES NO 9

DIMENSIONS ALU81

DIMENSIONS ALU83

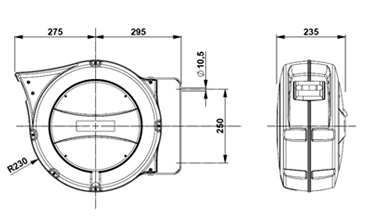

SP- REEL SERIES IND97

TECHNICAL FEATURES:

  • PU Hose
  • Techno polymer casing
  • Complete with pivot bracket
  • Provided with hose ratchet stop device, easily removable if constant traction is required.
MODEL NO HOSE ID MM HOSE MTR MAX PRESS BAR END PIPE FITTING HOSE TYPE AIR WATER KG
SPIND96/10 10 MM (3/8") 25 15 3/8"M PU YES YES 10
SPIND96/13 12.5 (1/2") 16 15 1/2"M PU YES YES 10

SP- REEL SERIES IND97/AGRO

TECHNICAL FEATURES:

  • Soft PVC hose with polyester yarn reinforcement.
  • Techno polymer casing
  • Complete with pivot bracket
  • Provided with hose ratchet stop device, easily removable if constant traction is required.
MODEL NO HOSE ID MM HOSE MTR MAX PRESS BAR END PIPE FITTING HOSE TYPE COLD WATER KG
SPIND-96/AGRO 12 MM (1/2") 18 6 NO PVC SI 14

AIR HOSE REEL (PLASTIC BODY) OPEN TYPE

Without Coil Cover

With Coil Cover Only coil cover model no. 9400

SP- REEL SERIES 9400 LOW PRESSURE

TECHNICAL FEATURES:

  • Steel brackets powder coated
  • Automatic hose stopping system at desired length
  • Multi position roller guide for longer life and easy winding and unwinding of the hose
  • Adjustable hose stopper
  • PU Hose : Double 鈥搇ayer hose, reinforced with high tenacity polyester
MODEL NO HOSE ID MM HOSE MTR MAX PRESS BAR HOSE TYPE INCOMING FITTING END PIPE FITTING AIR WATER OIL KG
SP9401L - 20 BAR NO HOSE 1/2"F 1/2"F YES YES NO
SP9480L - 20 BAR NO HOSE 1/2"F 1/2"F YES YES NO
SP9412L 6 MM (1/4") 20 20 BAR SAE 100 R6 1/2"F 1/4"M YES YES NO 10
SP9402L 8 MM (5/16") 20 20 BAR SAE 100 R6 1/2"F 1/4"M YES YES NO 10
SP9404L 10 MM (3/8") 12 20 BAR SAE 100 R6 1/2"F 3/8"M YES YES NO 10
SP9406L 10 MM (3/8") 18 20 BAR SAE 100 R6 1/2"F 3/8"M YES YES NO 10
SP9408L 12.5 10 20 BAR SAE 100 R6 1/2"F 1/2"M YES YES NO 10
SP9410L 12.5 15 20 BAR SAE 100 R6 1/2"F 1/2"M YES YES NO 10
SP9424L 10 20 20 BAR PU 1/2"F 3/8"M YES YES NO 10
SP9426L 12.5 15 20 BAR PU 1/2"F 1/2"M YES YES NO 10
SP9427L 12.5 20 20 BAR PU 1/2"F 1/2"M YES YES NO 10
SP9474L 12.5 10 170 EN 857 1SC 3/8" F 1/2"M NO NO YES 10
SP9440L NO HOSE - 200 - 1/2"F - - - - -
SP9442L 10 15 200 EN 857 1SC BLACK 3/8" F 3/8" F NO YES YES 10
SP9443L 10 18 200 EN 857 1SC BLACK 3/8" F 3/8" F NO YES YES 10
SP9446L 10 15 200 EN 857 1SC BLUE NON MARKING 3/8" F 3/8" F NO YES YES 10
SP9448L 10 18 200 EN 857 1SC BLUE NON MARKING 3/8" F 3/8" F NO YES YES 10

Without Coil Cover

With Coil Cover Only coil cover model no. 9400

SP- REEL SERIES 9400 HIGH PRESSURE

TECHNICAL FEATURES:

  • Steel brackets powder coated
  • Automatic hose stopping system at desired length
  • Multi position roller guide for longer life and easy winding and unwinding of the hose
  • Adjustable hose stopper
MODEL NO HOSE ID MM HOSE MTR MAX PRESS BAR HOSE TYPE INCOMING FITTING END PIPE FITTING AIR WATER OIL KG
SP9474H 12.5 MM (1/2" 10 160 EN 857 1SC 3/8" F 1/2" F YES YES NO
SP9440H - - 200 WITHOUT HOSE 3/8" F 1/2" F YES YES NO
SP9441H 8 MM (5/16") 20 200 1 SC NERO 3/8" F 3/8" F YES YES NO
SP9442H 10 MM (3/8") 15 200 1 SC NERO 3/8" F 3/8" F YES YES NO
SP9443H 10 MM (3/8") 18 200 1 SC NERO 3/8" F 3/8" F YES YES NO
SP9446H 10 MM (3/8") 15 200 1 SC BLU 3/8" F 3/8" F YES YES NO
SP9448H 10 MM (3/8") 18 200 1 SC BLU 3/8" F 3/8" F YES YES NO
SP9460H - - 400 WITHOUT HOSE 3/8" F 1/2" F NO NO YES
SP9462H 6 MM (1/4") 12 400 EN857 2SC 3/8" F 1/4" M NO NO YES
SP9463H 6 MM (1/4") 18 400 EN857 2SC 3/8" F 1/4" M NO NO YES

SP- REEL SERIES 913

TECHNICAL FEATURES :

  • Bimaterial hose in PVC/PU, matt blue
  • Diecast aluminium casing, undercoat paint finish.
  • Complete with pivot bracket for mounting
  • Provided with hose ratchet stop device, easily removable if constant
MODEL NO HOSE ID MM HOSE MTR MAX PRESS BAR HOSE TYPE INCOMING FITTING END PIPE FITTING AIR WATER KG
SP913/8 8 MM (5/16") 12 12 BAR PU/PVC 2 M 1/4"M YES YES 10.5
SP913/10 10 MM (3/8") 9 12 BAR PU/PVC 2 M 3/8"M YES YES 10.5
SP913/8/S 8 MM (5/16") 12 12 BAR PU/PVC 2 M 1/4"M YES YES 10.5
SP913/10/S 10 MM (3/8") 9 12 BAR PU/PVC 2 M 3/8"M YES YES 10.5
